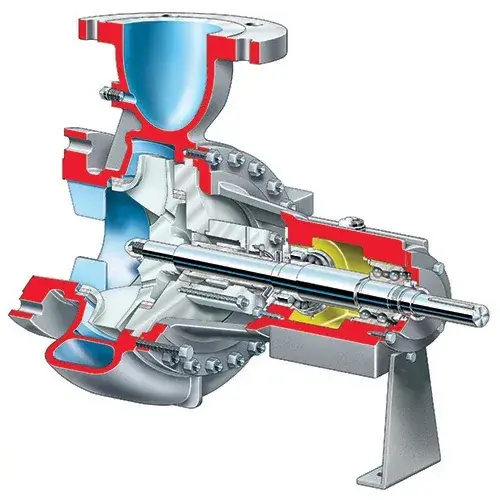

Worthington® ERPN API Process Pump

Worthington® ERPN API Process Pump

Product Brand
Worthington®

Type
Overhung Pumps

SubType
API Process Pumps

About this product
The ERPN is the pump of choice for severe chemical, petrochemical, refining and heavy-duty industrial service where deviations to API 610 are accepted. This pump provides users with the important mechanical, hydraulic, emissions control and safety components required by the latest ISO 13709/API 610 standards.



  • Single stage, radially split, overhung, centerline mounted pump, designed in accordance to ISO13709 / API 610 latest edition OH2 requirements, only deviating from this standard by using a rear pump bearing housing support
  • Available in a wide range of materials like S5, S6, C6, A8, D1, D2 and LTS material, special alloys, titanium, NACE MR0175 and MR0103 compliant materials
  • Back pull-out design for ease of maintenance, less wear parts
  • Closed, semi-open or open impeller are available as well inducers for low NPSHa applications
  • The self venting casing has a top discharge, double or single volute depending on size and can be equipped with a steam heating jacked
  • Anti vortex plates grant optimized suction behavior
