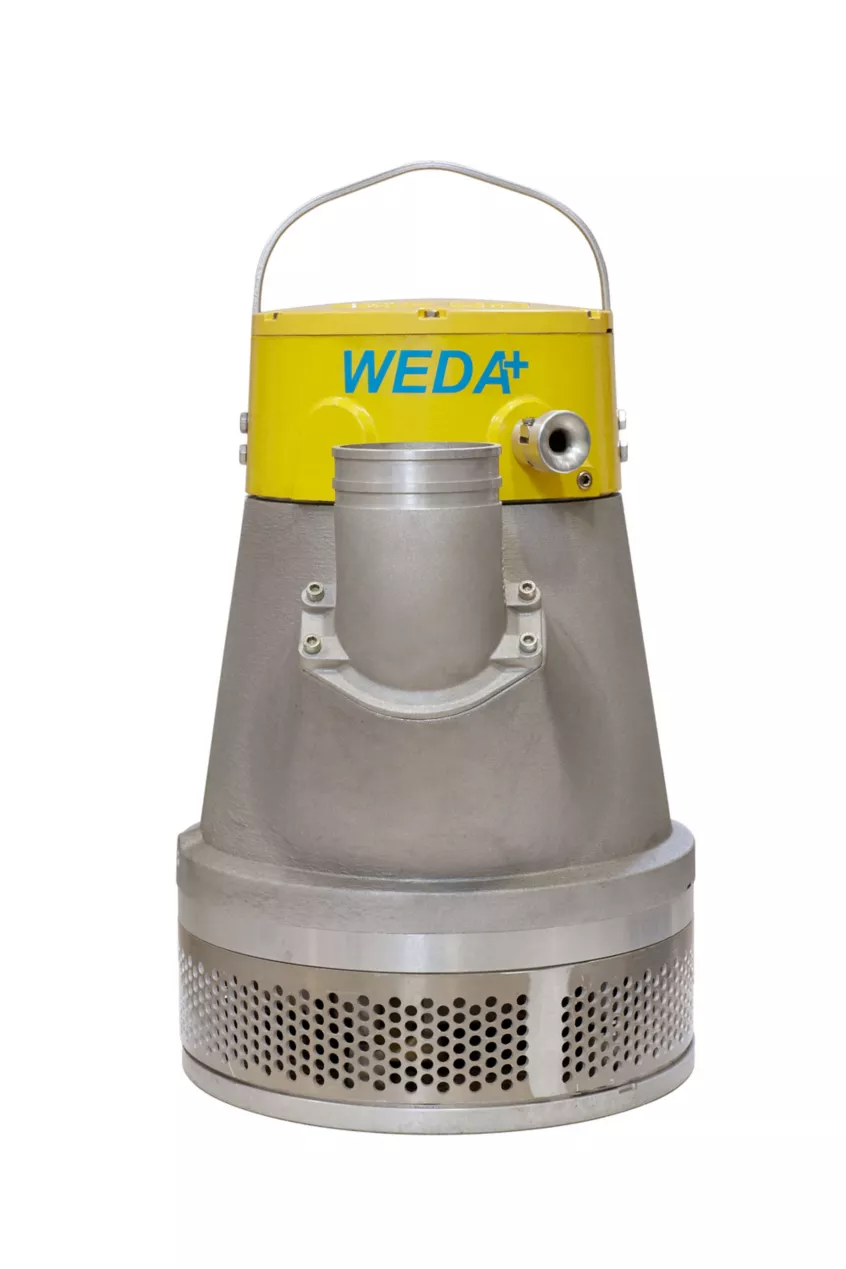

WEDA D80H
The WEDA D80H drainage pump features a max head of up to 240ft, max flow of 760USgpm, and can withstand solids of up to 0.47in.
The WEDA drainage pumps handle either clean or sand-laden water, even with small solid particles, with the best performance and efficiency. These pumps are particularly suitable for general dewatering applications, ground water, raw water, construction sites and harsh conditions on site.
SPECS
power rating
| Product Code | WEDA D80H |
| Installation | Portable drainage pump |
| Hydraulic range | N - normal head H - high head |
| Insulation class | F (+155°C/+311°F) IEC 85 |
| Protection class | IP68 |
| Voltage variation | Max ± 5% of nominal voltage |
| Voltage imbalance | Max 2% - between phases |
| Max start-stop | Max 30 starts/hour |
| Cable | H07RN-F (20 m) or SOOW AWG (65 ft) |
| Casted parts | Corrosion resistant aluminum |
| Impeller | High chrome iron, 55±5 HRC |
| Wear parts | Rubber (NBR) |
| Strainer | Corrosion resistant aluminum |
| Shaft | Stainless steel |
| O-rings | Rubber (NBR) |
| Main bearing | Double row ball bearing in oil, pre-greased |
| Mechanical seal | Cartridge-type, primary + secondary: SiC/SiC |
| Built-in controls and protection | contactor + control relay + overload relay |
| Thermal contacts | 140°C / 284°F |
| Options / accessories | Float switch Zinc anodes Epoxy coating Quick couplings (hose / NPT / ISO-G / Camlock / Storz) Pump raft NSSHÖU screened cable Terminal board Softstarter |
| Solids handling, strainer hole | 0.47 in |
| Liquid temperature | Max 104°F |
| Depth of immersion | Max 65 ft |
| Max liquid specific gravity | 1.1 |
| pH of the pumped liquid | pH 5–8 |
| Weight and dimensions | H - High Head |
| Discharge connection (in) | 4 |
| Hieght (in) | 38.6 |
| Width (in) | 26.2 |
| Diameter (in) | 20.9 |
| Weight (excl. cable) (lb) | 390 |
