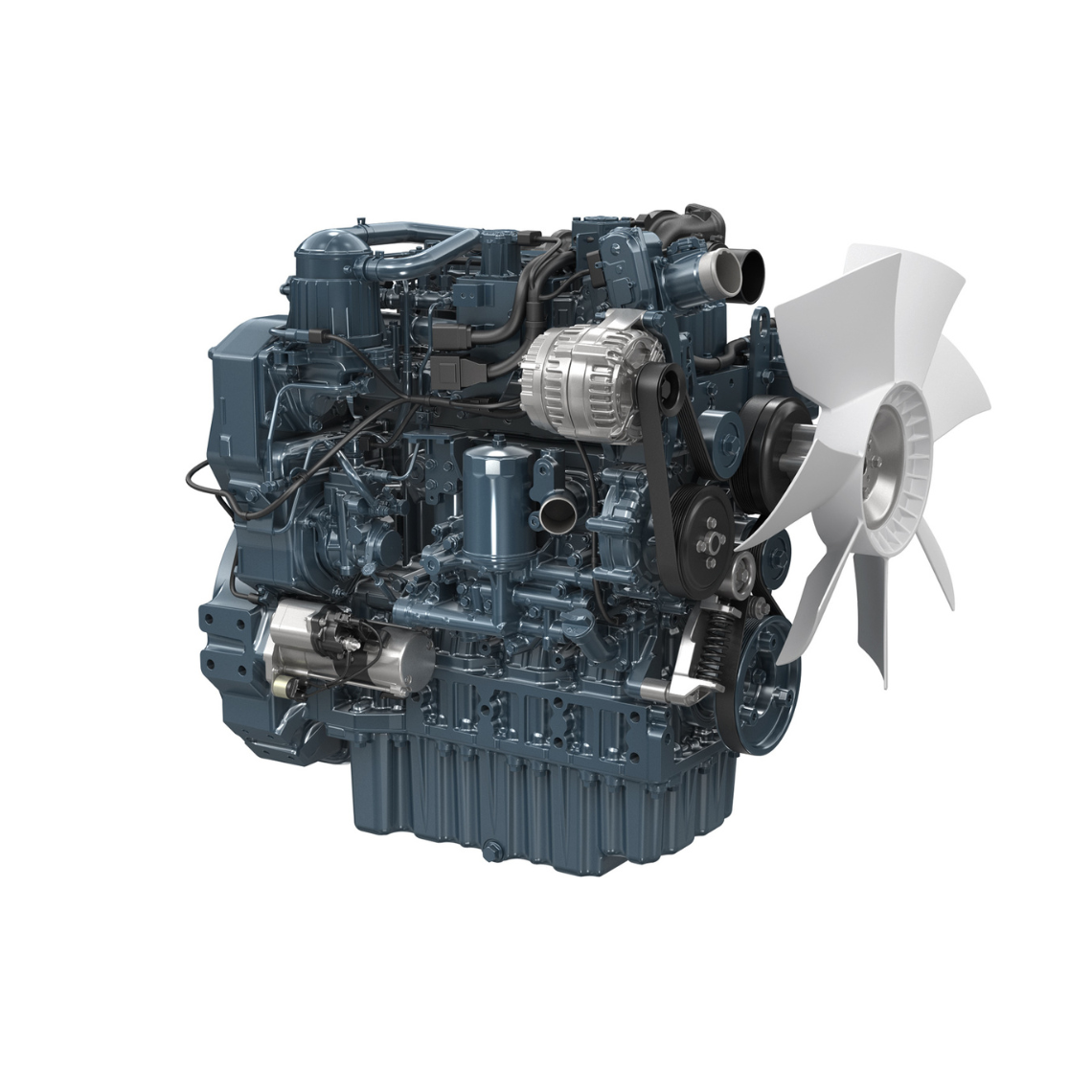

Engine model	V5009
Emission regulation	China NR IV (below 130kW category)
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and stroke  -- mm (in)	110.0 x 132.0 (4.331 x 5.197)
Displacement -- L (cu.in)	5.017 (306.2)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	DOC + DPF
Rated output / speed*1   --   kW (HP) / rpm	131.3 (176.1) / 2200*4
Maximum torque / speed*1   --   Nm (lb-ft) / rpm	863 (636) / 1400*5
Combustion system	Direct injection
Fuel system	Common rail system
Length x Width x Height*2 (without aftertreatment unit)   --   mm (in)	898 x 656 x 978 (35.4 x 25.8 x 38.5)
Length x Width x Height*3 (with aftertreatment unit)   --   mm (in)	-
Dry weight   --   kg (lb)	632 (1393)



Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.



*1: SAE J1995
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine
*4: ISO 14396: 129.4 (173.5)/2200 kW (HP) / rpm
*5: ISO 14396: 850 (627)/1400 Nm (lb-ft) / rpm
