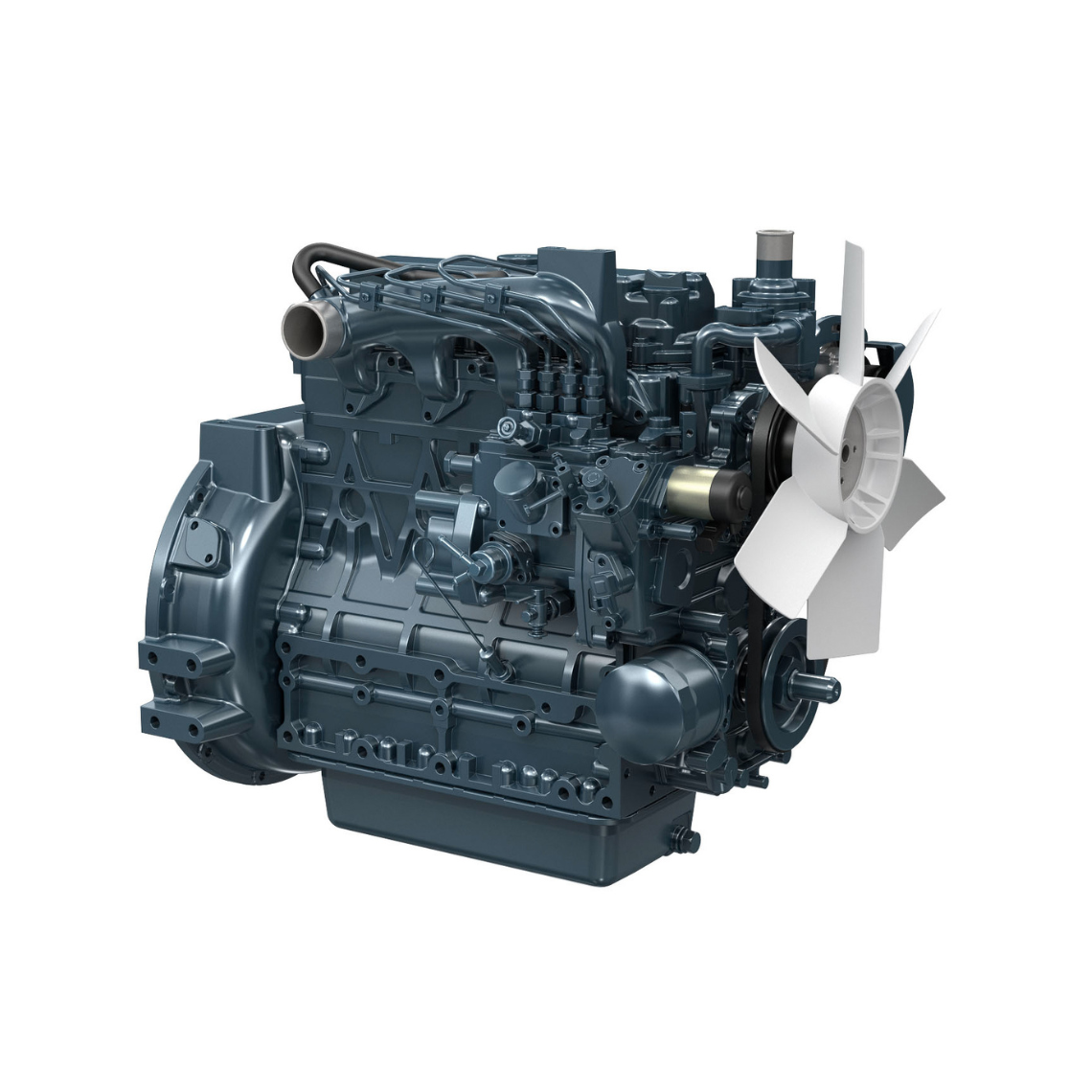

V2403-M-E3-BG2
Diesel
V2403-M-E3-BG2
kW / HP : 18.8 / 25.2
rpm : 1500
Emission :
EU Stage IIIA lebel
| Engine model |
V2403-M-E3-BG2 |
| Emission regulation | EU Stage IIIA lebel |
| Type | Vertical, water cooled 4-cycle diesel engine |
| Cylinders | 4 |
| Bore and stroke -- mm (in) | 87.0 x 102.4 (3.43 x 4.031) |
| Displacement -- L (cu.in) |
2.434 (148.5) |
| Aspiration | Naturally aspirated |
| Aftertreatment | - |
| Stand-by output / speed*1 -- kW (HP) / rpm |
22.0 (29.5) / 1500 |
| Continuous output / speed*2 -- kW (HP) / rpm | 18.8 (25.2) / 1500 |
| Combustion system | Indirect injection |
| Fuel system | In-line pump |
| Length x Width x Height*3 (without aftertreatment unit) -- mm (in) |
669 x 484 x 684 (26.3 x 19.1 x 26.9) |
| Length x Width x Height*4 (with aftertreatment unit) -- mm (in) | - |
| Dry weight -- kg (lb) | 204 (449) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
