Single Case Pumps - Axially Split - API - LPN
Product Brand
Worthington®
Type
Between Bearings Pumps
SubType
Single Case Pumps - Axially Split - API
About this product

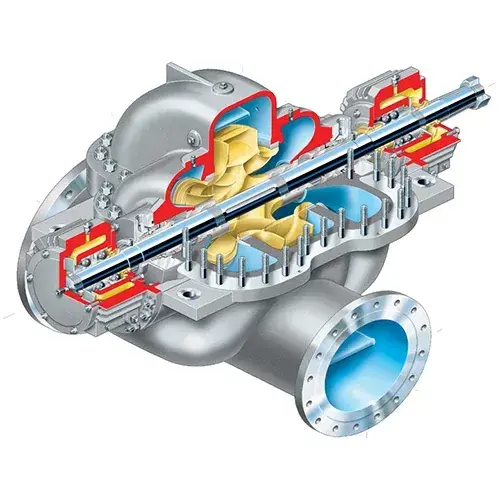

The LPN is a between bearing, axially split, one-stage pump. With a double suction impeller and side-side nozzles, this medium-pressure pump is a natural solution for low NPSH applications, such as water and hydrocarbon transfer service.
- High uptime made possible by double-suction impeller and double volute designs, which create optimal axial and radial thrust balance
- Increased MTBR resulting from heavy-duty bearings and bearing lubrication system; multiple options available to suit application requirements
- Superior performance at elevated temperatures with near-centerline mounting
- Simplified maintenance enabled by the split-casing design, which permits the rotor, seals and bearings to be serviced without disturbing the piping
- Emissions control with ISO 21049/API 682 seal chambers
- Centerline
- Nozzle loading capability beyond API 610, API 68
