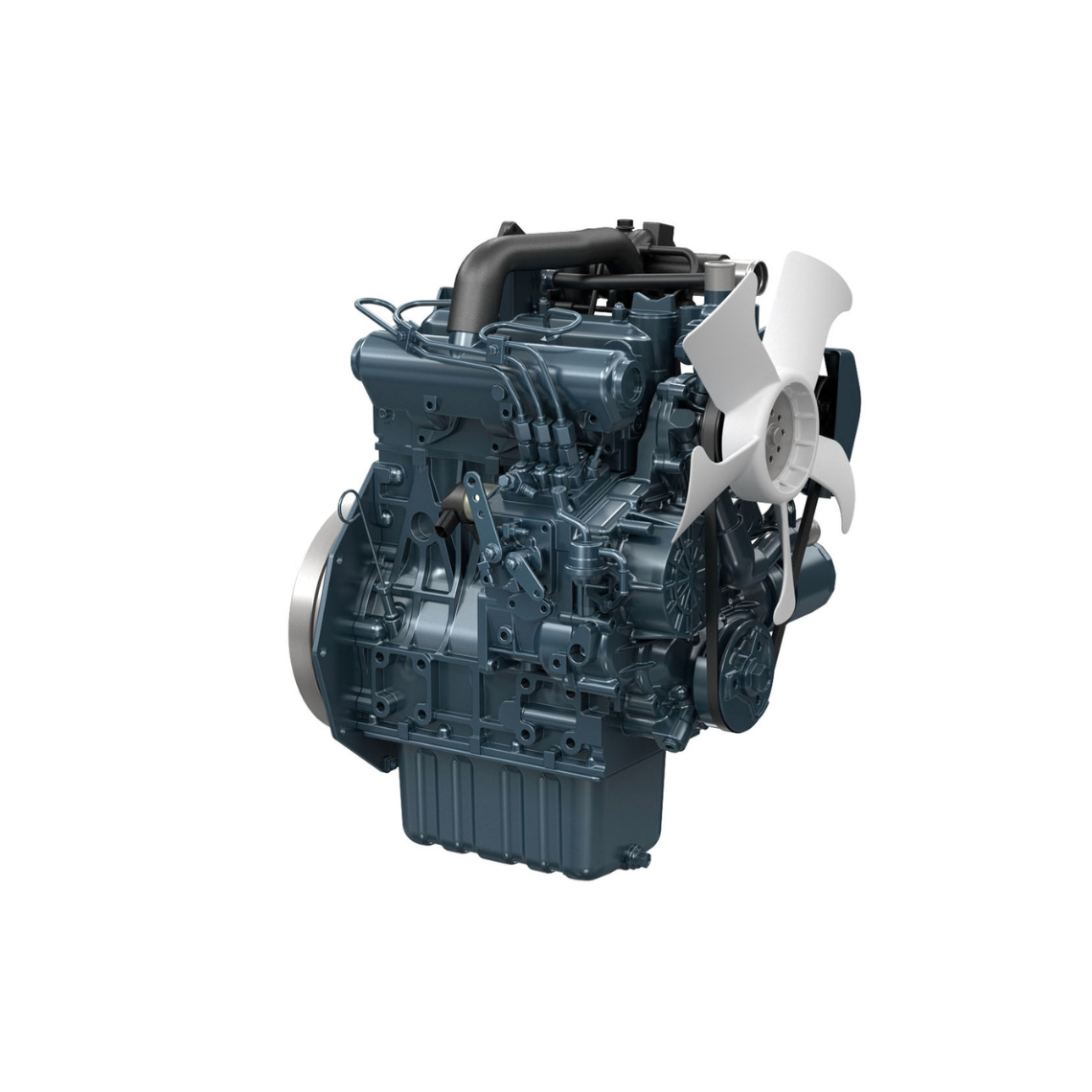

D1105-T-E2B
Diesel
D1105-T-E2B
kW / HP : 24.5 / 32.9
rpm : 3000
Emission :
EPA/CARB Tier 2 level + EU Stage IIIA level
| Engine model |
D1105-T-E2B |
| Emission regulation | EPA/CARB Tier 2 level + EU Stage IIIA level |
| Type | Vertical, water cooled 4-cycle diesel engine |
| Cylinders | 3 |
| Bore and stroke -- mm (in) | 78.0 x 78.4 (3.07 x 3.09) |
| Displacement -- L (cu.in) |
1.123 (68.53) |
| Aspiration | Turbocharged |
| Aftertreatment | - |
| Rated output / speed*1 -- kW (HP) / rpm |
24.5 (32.9) / 3000 |
| Maximum torque / speed*1 -- Nm (lb-ft) / rpm | 88.1 (65.0) / 2000 |
| Combustion system | Indirect injection |
| Fuel system | In-line pump |
| Length x Width x Height*2 (without aftertreatment unit) -- mm (in) |
480 x 433 x 629 (18.9 x 17.0 x 24.8) |
| Length x Width x Height*3 (with aftertreatment unit) -- mm (in) | - |
| Dry weight -- kg (lb) | 97 (214) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine
