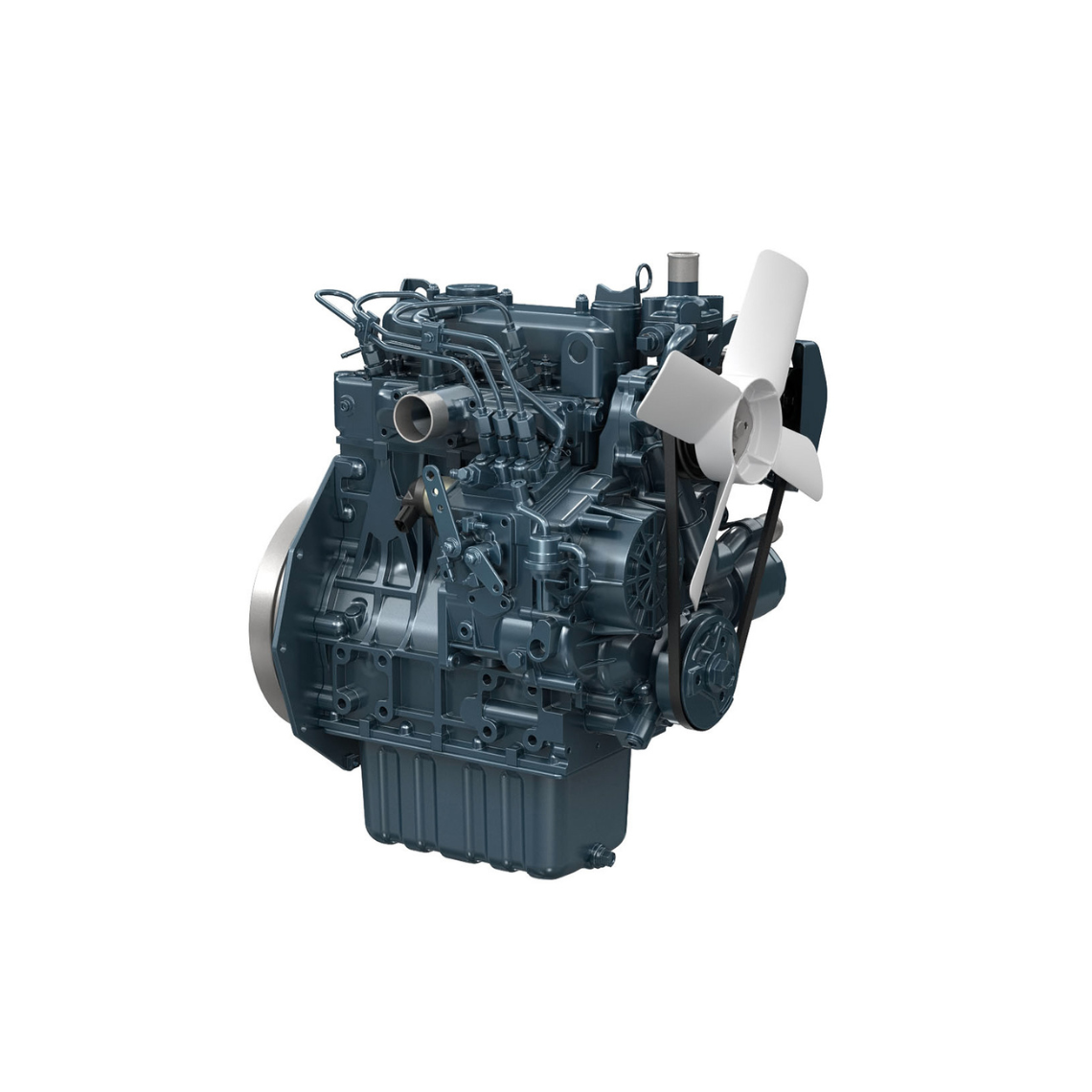

D1105-E3B (3600 rpm)
Diesel
D1105-E3B (3600 rpm)
kW / HP : 21.7 / 29.1
rpm : 3600
Emission :
EPA/CARB interim Tier 4 level + EU Stage IIIA
GENERAL SPECIFICATION
STAND BY HP
CONTINUOUS HP
EMISSIONS LEVEL
ENGINE DISPLACEMENT
| Engine model |
D1105-E3B (3600 rpm) |
| Emission regulation | EPA/CARB interim Tier 4 level + EU Stage IIIA |
| Type | Vertical, water cooled 4-cycle diesel engine |
| Cylinders | 3 |
| Bore and stroke -- mm (in) | 78.0 x 78.4 (3.07 x 3.09) |
| Displacement -- L (cu.in) |
1.123 (68.53) |
| Aspiration | Naturally aspirated |
| Aftertreatment | - |
| Rated output / speed*1 -- kW (HP) / rpm |
21.7 (29.1) / 3600 |
| Maximum torque / speed*1 -- Nm (lb-ft) / rpm | 65.2 (48.1) / 2600 |
| Combustion system | Indirect injection |
| Fuel system | In-line pump |
| Length x Width x Height*2 (without aftertreatment unit) -- mm (in) |
480 x 396 x 605 (18.9 x 15.6 x 23.8) |
| Length x Width x Height*3 (with aftertreatment unit) -- mm (in) | - |
| Dry weight -- kg (lb) | 93 (205) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine
